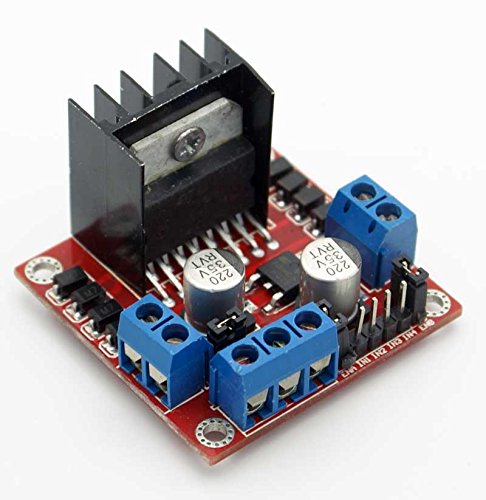

Robodo Electronics L298 Motor Driver Module

byMr.Feedback -
0

Price: [price_with_discount]
(as of [price_update_date] - Details)




The L298N driver module, using ST's L298N chip can directly drive two 3-30V DC motor, and provides a 5V output interface can 5V single-chip circuitry to supply, support 3.3VMCU control, you can easily control the DC motor speed and direction, you can also control the 2-phase stepper motor, smart car essential. Using L298N made by ST company as the control chip,the module has such characteristics as strong driving ability, low calorific value and strong anti-interference ability. Features: Driver: L298N Dual H Bridge DC Motor Driver IC Driven part of the terminal supply area Vs: +5 V ~ +35 V; such as the need to take power within the board, the supply area Vs: +7 V ~ +35 V Driven part of the peak current Io: 2A The logical part of the terminal supply area Vss: +5 V ~ +7 V (can take power within the board +5 V) The logical part of the operating current range: 0 ~ 36mA Storage temperature: -25 Deg C ~ +130 Deg C Other Extensions: control of direction indicators, the logic part of the plate to take power interface. Driver Board Size: 55mm * 60mm * 30mm Drive plate Weight: 33g Other Function: Control the direction indicator, power indicator, current detection, the logic part of the board to take power interface.The L298N driver module, using ST's L298N chip can directly drive two 3-30V DC motor, and provides a 5V output interface can 5V single-chip circuitry to supply, support 3.3VMCU control, you can easily control the DC motor speed and direction, you can also control the 2-phase stepper motor, smart car essential.Drive a 2-phase bipolar stepper motor or two DC motors with the L298 dual H-Bridge chip, mounted on this handy breakout board along with all necessary peripherals
It is ideal for robotic applications and well suited for connection to a microcontroller requiring just a couple of control lines per motor
It can also be interfaced with simple manual switches, TTL logic gates, relays, etc.





[
